Nitrogen Pumping Unit Non-Fired

Our non-fired trailer-mounted pumping units come standard with a diesel engine, gearbox, NP-200 nitrogen pump, nitrogen boost pump, water bath vaporizer, hydraulics, liquid nitrogen storage tank, and necessary piping and controls.

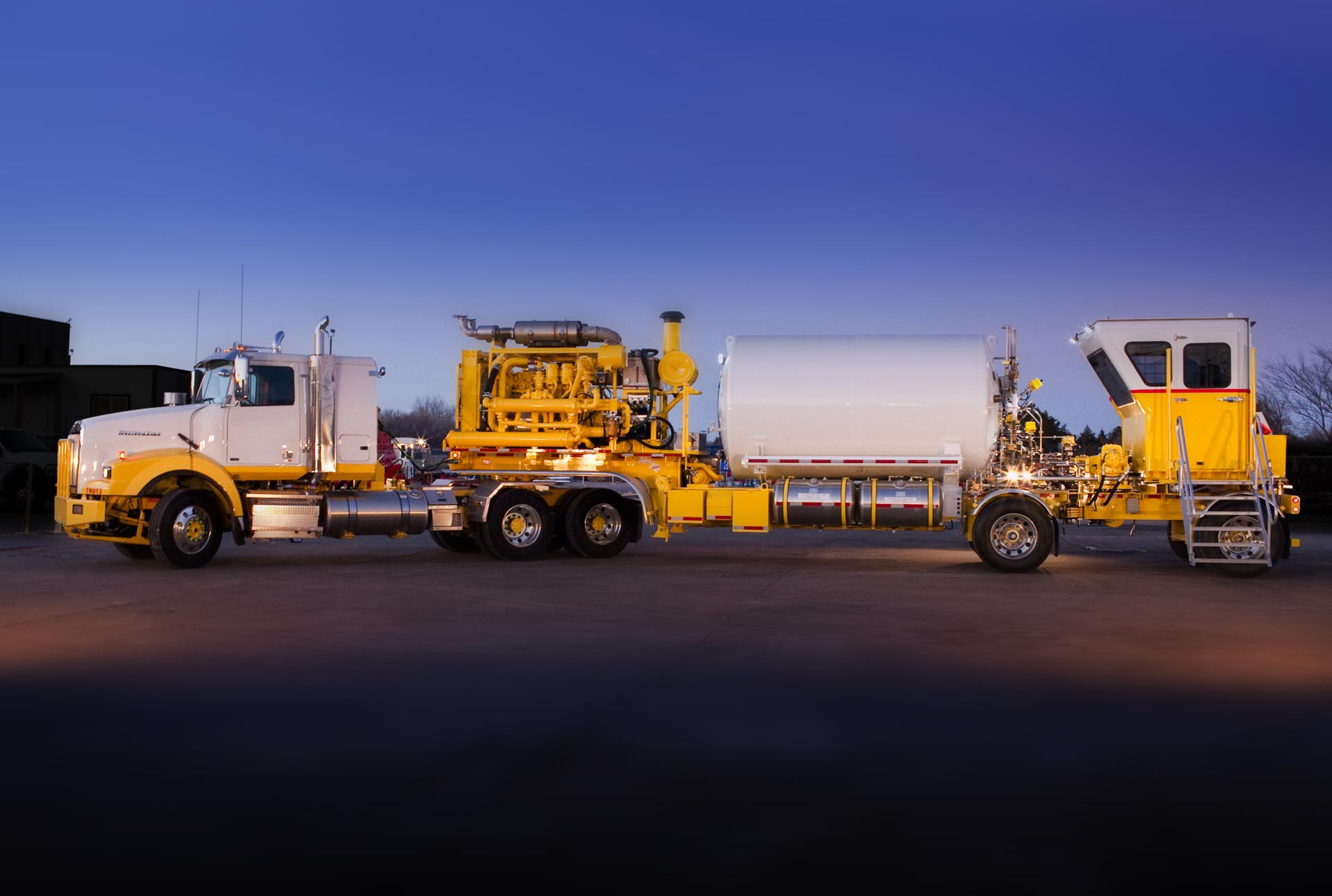

Side view of Trailer-Mounted Nitrogen Unit at dusk
Have a question? Contact us.
Description

Our sales and engineering teams work closely with you to ensure your operational needs are met and custom changes can be made.

Options

  • Cabin location: rear/center
  • Controls: touch/manual
  • Domestic versus export
  • Actuated versus manual valves
  • TCRN
Specifications

Non-Fired Pump Specifications

Model

Cold End Diameter

Maximum Flow

Maximum Pressure

TR90NF

1.250 in. (31.75 mm)

90,000 scfh (2365 m³/hr)

15,000 psi (103 MPa)

TR180NF

1.625 in. (41.275 mm)

180,000 scfh (4730 m³/hr)

10,000 psi (69 MPa)

TR270NF

2.000 in. (50.8 mm)

270,000 scfh (7096 m³/hr)

6,000 psi (41 MPa)

TR360NF

1.625 in. (41.275 mm)

360,000 scfh (9461 m³/hr)

10,000 psi (69 MPa)
Resources

  • Hydra Rig Nitrogen Products Brochure

A side-rear view of Trailer-Mounted Nitrogen Unit
