KING COBRA HYBRID Shale Shaker

The BRANDT KING COBRA HYBRID shaker reduces the liquid pool depth to enable better conveyance of drilled solids across shaker screens.

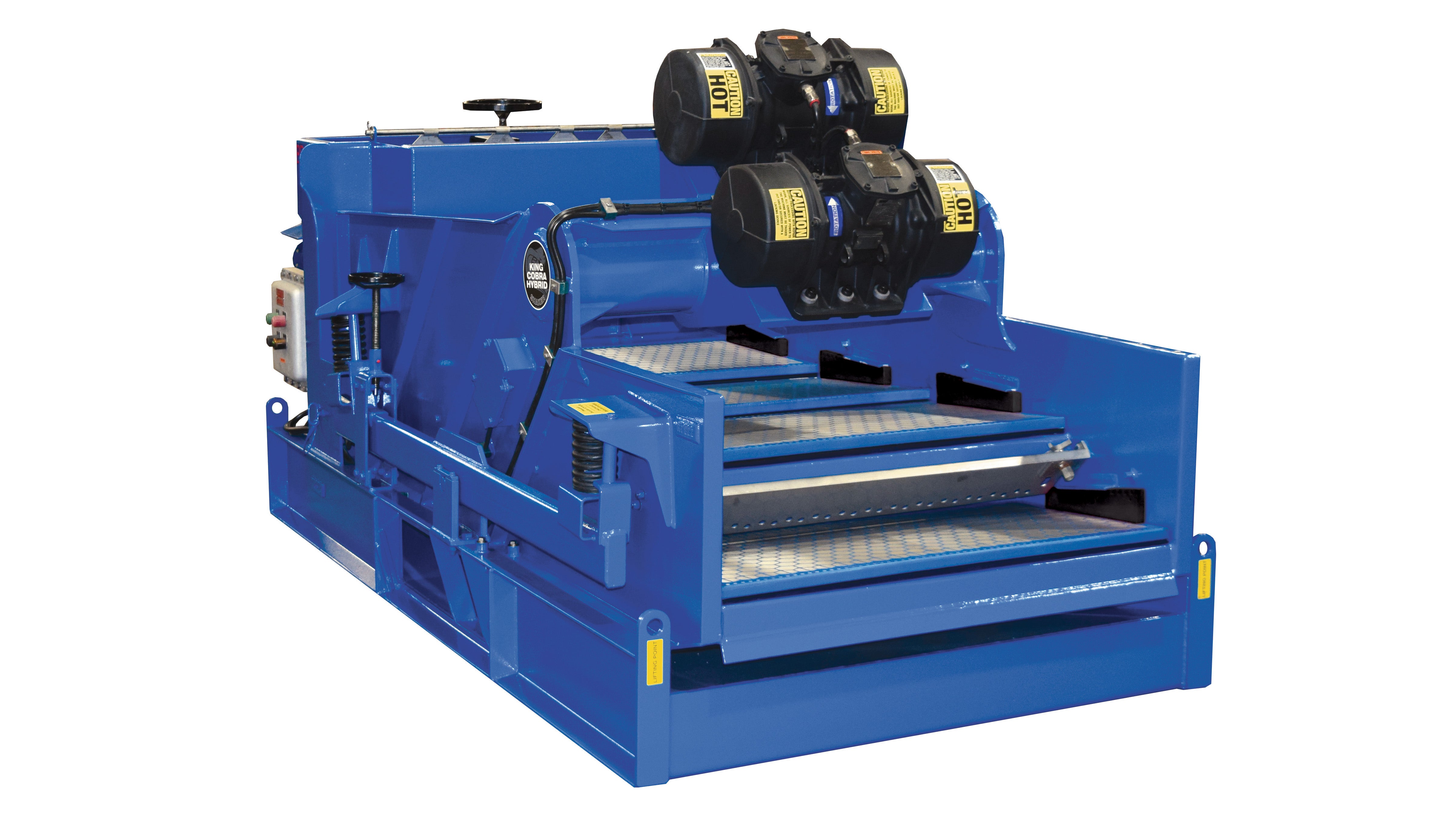

Render of KING COBRA HYBRID Shale Shaker
Have a question? Contact us.
Description

Combining ruggedness, reliability, and high-performance options

The BRANDT™ KING COBRA™ HYBRID shaker combines the reliable KING COBRA standard skid, backtank, and screen-angle adjustment features with the rugged new KING COBRA VENOM™ shaker basket. The basket’s patented Contour Plus™ design reduces the liquid pool depth to provide better conveyance of drilled solids across the screens. Configured for 0° at the feed panel and +5° on the remaining panels, the Contour Plus design minimizes basket angle elevation and achieves drier solids and increased screen life by decreasing the mud pool volume weight over the screens.

We’ve also equipped the KING COBRA HYBRID with a variety of high-performance options* like our patented Constant-G Control (CGC™) for increased process capacity and dual motion for more precise vibration control.

With the rugged reliability of the KING COBRA and the fine-tuned performance options of the KING COBRA VENOM, the KING COBRA HYBRID has the flexibility to meet your operation’s changing needs.

*All high-performance options can be ordered initially or installed in the field regardless of original factory configuration.

Features/Benefits

  • Minimal replacement parts
    • Small parts inventory
  • Linear motion (available on all configurations)
    • Rapidly separates and discharges solids
  • G-force
    • Fixed nominal
      • 6.1 G’s – 25 hp
      • 8.0 G’s – 3.5 hp
    • Constant-G Control – patented worldwide:
      • Automatically sustained settings as loading increases or decreases
      • 6.3 G optimal – 2.5-hp motors
      • 7.3 to 8.3 G optimal – 3.5-hp motors
  • Patented Contour Plus deck design with incorporated drying deck; deck angles 0°, +5°, +5°, and +5°
    • Increases screen life by diminishing mud pool volume and reduces mud losses via a dry solids discharge
  • Venom series screens
    • Larger screening area (33.4 ft2 or 3.1 m2)
    • Cost saving with elimination of crown rubbers
    • Repairable screens
    • Improved cuttings conveyance and fluid throughput
  • Patented pin-and-hole screen-securing system
    • Screen secured snugly to basket with no slipping
  • Manual flywheel deck-angle adjustment mechanism
    • Quick and easy deck-angle adjustments
  • Epoxy and glass flake paint system
    • Longer paint life
Specifications

KING COBRA HYBRID Shale Shaker Specifications

Dimensions (L x W x H) 1199⁄16 x 66⅛ x 65½ in. (3037 x 1680 x 1664 mm)
Weir height 413⁄16 in. (1046 mm)
Dry weight 5,300 lb (2404 kg)
Basket angle Adjustable -5° to +3°
Deck angle 0°, +5°, +5°, +5°
Screening area 33.4 ft2 (3.1m2)
Screen type (qty 4) Pretensioned, Repairable
Motor type (qty 2) Vibratory Canister Motors
Drive motor
  • 2.5 hp (1.9 kW) each - Standard
  • 3.5 hp (2.6 kW) each - Optional
Vibration motion Linear or Dual
Optional certifications ATEX Zone 1, CE Ex II 2 G c IIB T4 Gb; Ta -20 to +40/55 °C
  • No CGC: Ta -20 to +55 °C
  • CGC: Ta -20 to +40 °C
