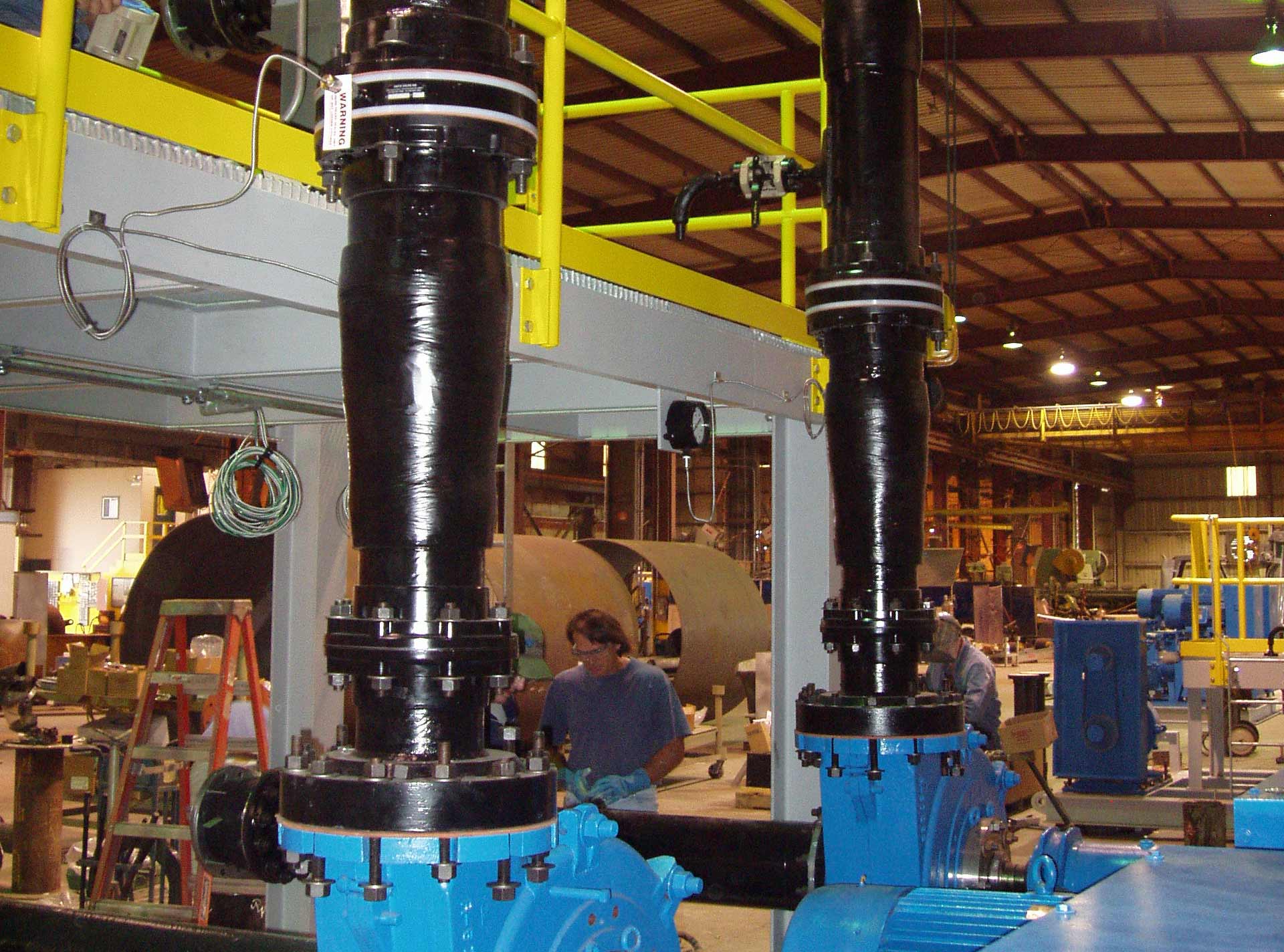

Silver Streak Fiberglass Pipe

Fiberglass pipe that's ready for your toughest abrasive applications

Description
Specifications
Resources

Description

Ideal for abrasive and corrosive services found in flue gas desulfurization (FGD) scrubber and mining applications, Silver Streak™ pipe is filament-wound using epoxy resin and fiberglass reinforcement. Manufactured with a proprietary blend of abrasion-resistant additives, it is offered with a standard 80-mil nominal liner. Custom liner thicknesses are available upon special request.

Applications

Mining
Chemical and industrial

Specifications

Silver Streak Fiberglass Pipe Specifications

Model	Silver Streak	Silver Streak LD
Size range	2 to 48 in.	30 to 48 in.
Inner corrosion barrier	70- to 100-mil abrasion-resistant liner	100-mil abrasion-resistant liner
Pressure ratings	2 to 24 in. – 150 psig (10 bar)	30 to 24 in. – 225 psig (15 bar)
Temperature range	Up to 225 °F (107 °C)	Up to 200 °F (93 °C)
Fittings	Bell and spigot or butt and wrap	Flanges or butt and wrap
Service	Abrasive and corrosive service applications such as limestone and gypsum slurries in FGD scrubbers
Construction	Filament-wound with epoxy or vinyl-ester resin and fiberglass roving with special abrasion-resistant liners
