Orion V DAS for Intervention
Data acquisition system for real-time data monitoring at the wellsite
-
Description
-
Specifications
-
Resources
Your operations, connected.
In the data-integrated oilfield, the most dependable and widely utilized data acquisition system (DAS) has greater utility than ever before. Along with our renowned CTES™ 24/7 customer support, the Orion™ V DAS is the most versatile system in the well intervention industry, making your data tracking and reporting easy.

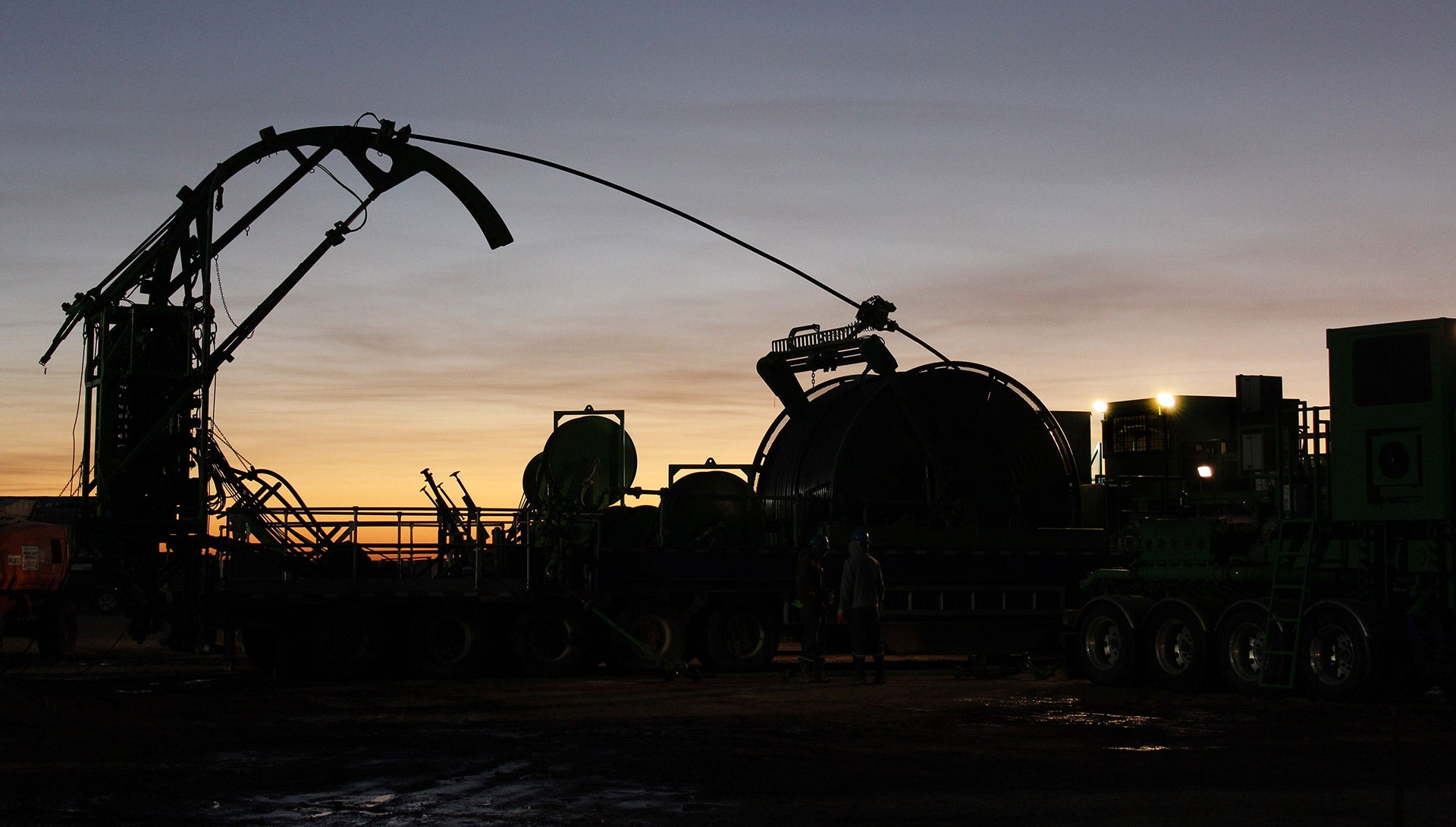

With space being a premium in today’s coiled tubing unit, pressure pumping cabin, wireline truck, liquid additive system, or snubbing unit, the small footprint of the Orion V DAS was specifically developed by CTES with space-savings in mind.
Configuration
The Orion system is modular and can be configured to meet user requirements, including ATEX certification. Up to 48 channels are available for I/O. Depending on the number of channels requested, an additional enclosure may be required. The standard package provides the following channels, at a minimum:
- Speed/depth
- Tubing weight
- Pipe heavy/pipe light
- Circulating and wellhead pressures
- Pump rate/volume
- Nitrogen rate/volume
Orion DAS hardware consists of:
- Ethernet-based hardware
- Sensors and cabling*
- Controller box
- Laptop or Max™ Edge*†
* quoted separately, may be provided by the customer
† minimum 2.4-GHz processor recommended, 16-GB RAM
Orion V DAS Specifications
| Power input | 10-36VDC, 2-6A, 30W (typical); optional 110-220VAC (Enclosure size may increase for certain options.) |
| Operating Temperature | 32 to 140°F (0 to 60°C), 95% RH (non-condensing) |
| Storage Temperature | -4 to 158°F (-20 to 70°C), 95% RH (non-condensing) |
| Enclosure Dimensions (Standard) | 16 x 12 x 7 in. |
| Enclosure Dimensions (ATEX) | 23.6 x 23.6 x 8 in. |
| Enclosure Dimensions (Snubbing) | 20 x 20 x 8 in. |
