HS-1960 Centrifuge

The HS-1960 centrifuge fuses high efficiency and compact design for maximum performance and effortless operation.

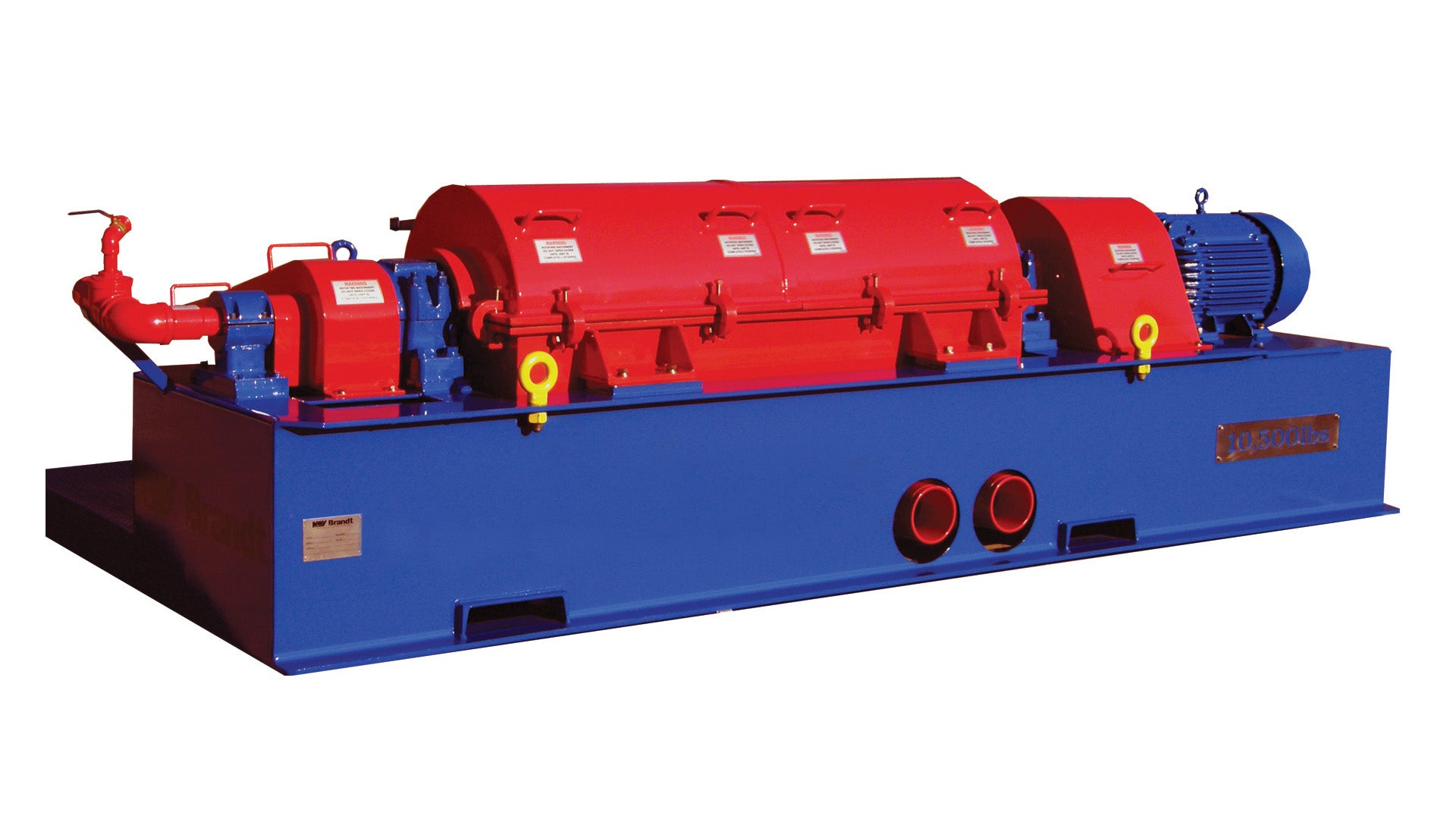

Render of  HS 1960 Centrifuge
Description

The BRANDT™ HS-1960 centrifuge uses high G-forces to separate fine solids from liquid. Drilling fluid (mud) is introduced into the feed chamber of the HS-1960 through a feed tube and—with the assistance of built-in S-shaped accelerators—exits into the bowl through two elongated windows. The HS-1960 centrifuge can exert up to 2,480 G’s on the mud.

The HS-1960 is equipped with variable-frequency drive (VFD) control, which provides a controlled application of motor drive power to the centrifuge components (bowl, conveyor, and feed pump). Hardware and software packages can be custom-designed to specific installation and operational requirements. With a processing capacity (water) of up to 350 gal/min (1325 L/min), the HS-1960 centrifuge can quickly process high volumes of mud while allowing prescribed mud weights and separation efficiencies to be maintained. This enables the HS-1960 centrifuge to produce fine cut points at higher flow rates, making it ideal for high-flow applications and critical-conditions solids control. Contact your NOV sales representative for more information.

Features/Benefits

  • 50 gal/min (1325 L/min) maximum processing capacity (water)
    • High processing capacity for use in high-flow drilling applications and conditions
  • 75:1 ratio planetary gearbox
    • Enables reduced motor size
  • Feed from solids end
    • Enables a short feed tube with less vibration
  • VFD control
    • Permits easy adjustment of bowl, conveyor, and feed pump speeds for varying process conditions; provides torque overload protection
  • Bowl and heads forged of stainless steel
    • Provides corrosion resistance for long life, smooth operation, and low maintenance
  • Stainless steel case
    • Offers high strength and corrosion resistance
  • Conveyor flights hard-surfaced with tungsten carbide
    • Offers abrasion resistance for maximum operational life and low maintenance
  • Tungsten carbide tiles on tapered solids end of conveyor
    • Provides increased abrasion resistance at the solids end
  • Flush connections
    • Aids in cleaning excess material from inside the case
  • Case gaskets
    • Contains process materials within the case
  • Vibration switch shut-off mechanism
    • Automatically disables operation in situations of high vibration
  • Stainless steel rotating assembly
    • Provides corrosion resistance for long life, smooth operation, and low maintenance
  • Split-case cover
    • Facilitates easy access for inspection and maintenance
  • Spherical roller and cylindrical-roller main bearings
    • Offers long life and low maintenance
  • Sturdy WF-beam skid
    • Supplies a solid foundation for smooth operation and long bearing life
  • Eight tungsten carbide solids discharge nozzles
    • Offers an abrasion-resistant exit of solids from the bowl to discharge
  • Six epicentric orifices
    • Conveys the liquid effluent to the discharge and enables easy adjustment of the pond depth
  • Dual 6-in. (152 mm) effluent discharge pipes
    • Enables high-capacity processing
Specifications

HS-1960 Centrifuge General Specifications

Length

160 in. (4064 mm)

Width (at bowl drive end)

83 in. (2108 mm)

Width (at conveyor drive end)

44.3 in. (1124 mm)

Height (lid closed)

44.1 in. (1121 mm)

Height (lid open)

64.3 in. (1634 mm)

Weight "dry"

11,600 lb (5262 kg)

Bowl diameter

19 in. (483 mm)

Bowl length

60 in. (1524 mm)

Maximum bowl speed

3,000 rpm

Typical bowl speed

2,700 rpm

Maximum processing capacity (water)

350 gal/min (1325 L/min)

Drive type

VFD

Maximum G-force

2,480

Rotating assembly

Conveyor pitch

4.5 in. (114 mm)

Conveyor type

Single

Feed chamber discharge type

Two-port

Gearbox type

Planetary

Gearbox ratio

75:1

Power requirements

*Optional 380, 480, and 575 VAC also available

Bowl drive motor

125 hp (93 kW)

Conveyor drive motor

40 hp (30 kW)

Voltage

460 VAC*

Resources
  • BRANDT Centrifuge Spec Sheet

  • BRANDT HS-1960 Centrifuge Fusing High Efficiency and Compact Design Flyer (English)

  • BRANDT HS-1960 Centrifuge Fusing High Efficiency and Compact Design Flyer (Arabic)

  • BRANDT HS-1960 Centrifuge Fusing High Efficiency and Compact Design Flyer (Brazilian Portuguese)

  • BRANDT HS-1960 Centrifuge Fusing High Efficiency and Compact Design Flyer (Spanish)

  • BRANDT HS 1960 Centrifuge Fusing High Efficiency and Compact Design Flyer (French)

  • BRANDT HS-1960 Centrifuge Fusing High Efficiency and Compact Design Flyer (Russian)

  • BRANDT HS-1960 Centrifuge Fusing High Efficiency and Compact Design Flyer (Chinese)
