Flow-Activated Double-Ended Selective Shifting Tool

Open or close multiple sliding sleeves in a single coiled tubing trip with our flow-activated Double-Ended Selective Shifting Tool.

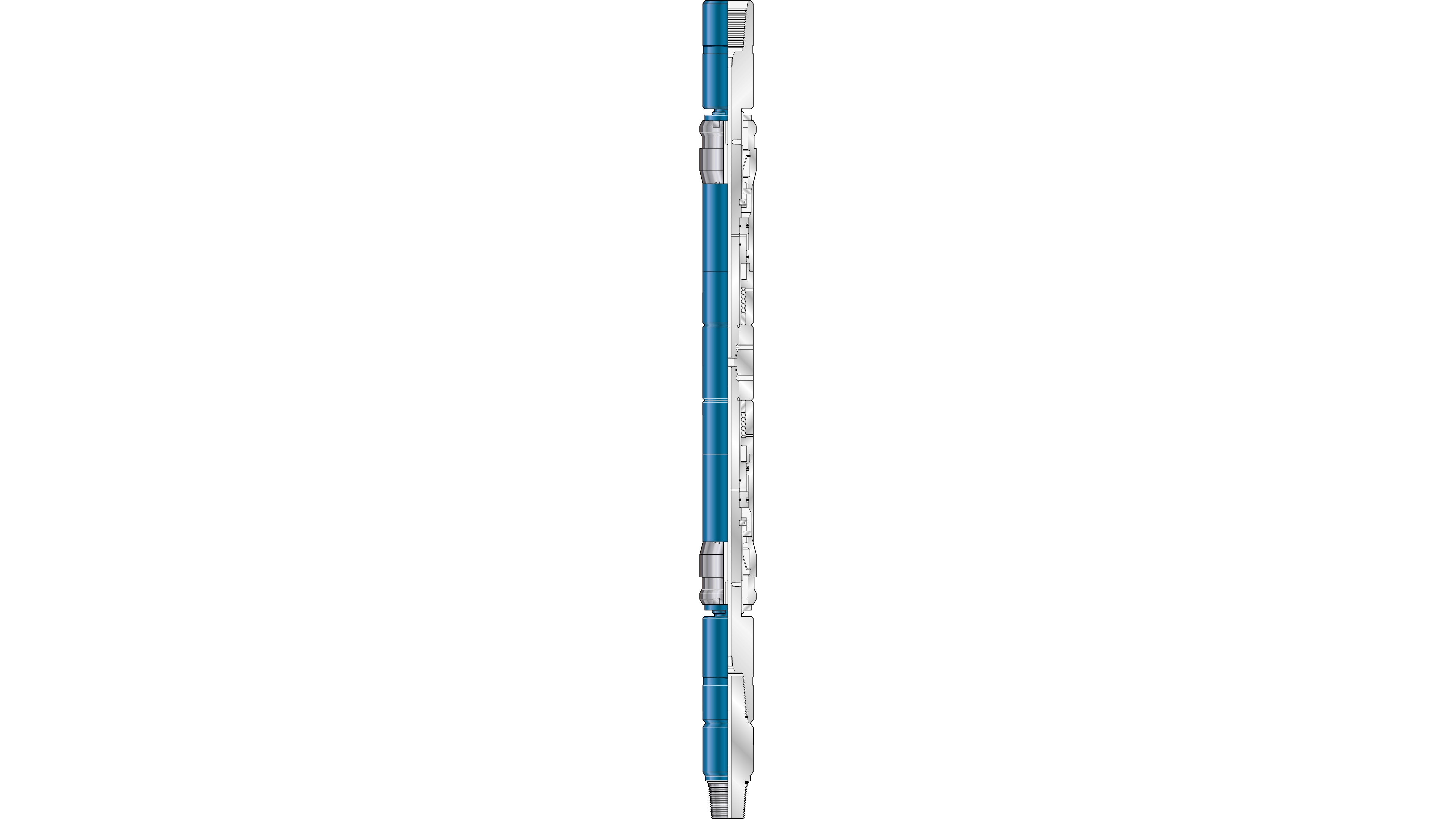

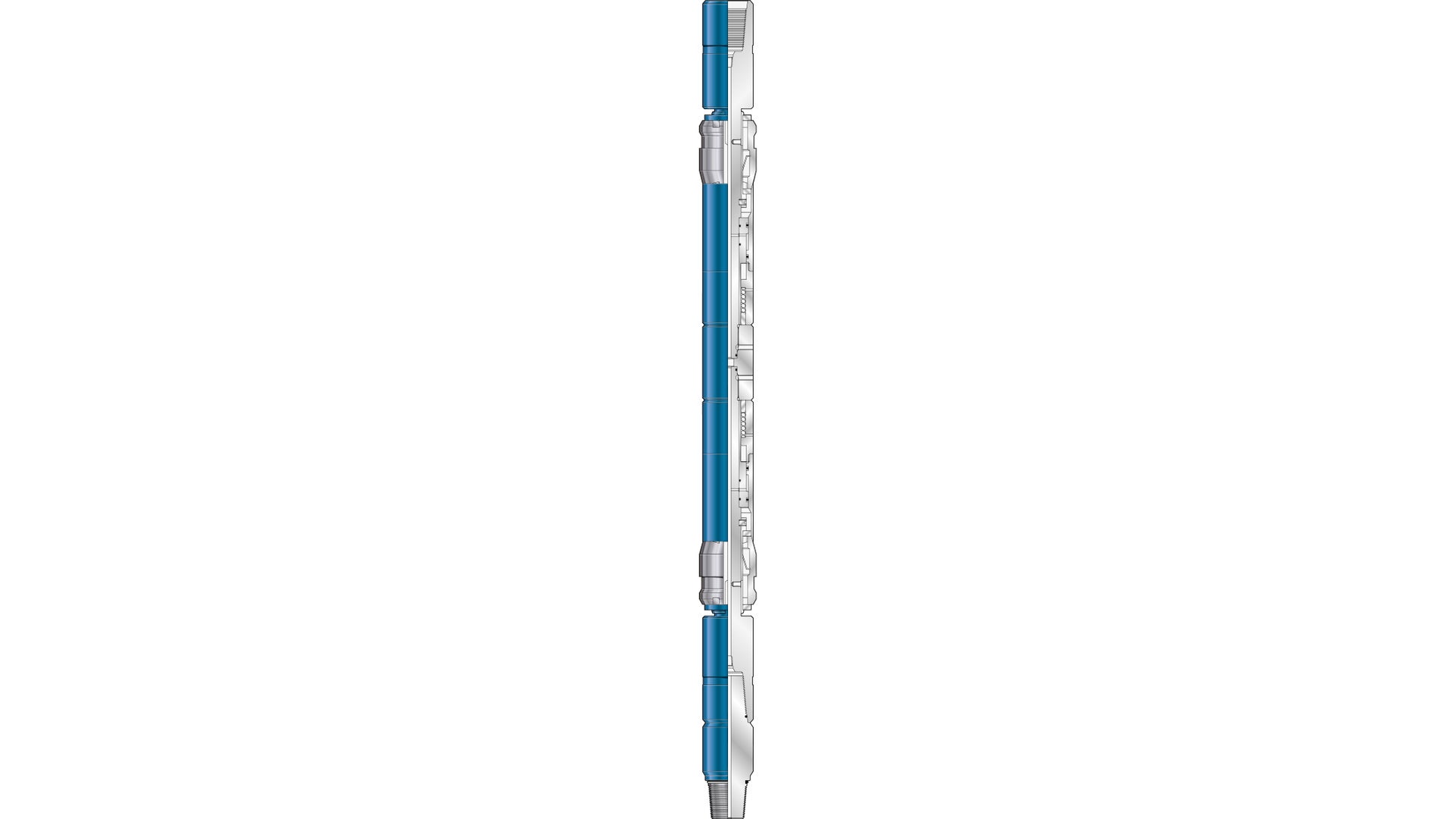

Render of Flow Activated Double Ended Selective  Shifting Tool
Description

The Double-Ended Selective Shifting Tool (DESST) has been designed specifically to selectively shift PCE, Otis, Camco, and Baker sliding sleeves (SSDs) in horizontal wellbores.

The DESST shifting keys are normally retracted during the running operation and are hydraulically flow activated to the open shift position by increasing surface pump volume and, in turn, pressure at the downhole location of the DESST and SSD. The DESST can selectively open or close multiple SSDs in a single coiled tubing trip.

When ordering Double-Ended Selective Shifting Tools, please specify size and thread connection.

Features/Benefits

  • Flow activated (no drop balls required)
  • Dual action for opening or closing sliding sleeves
  • Positive or selective key options
  • Optional external fish neck
