Fiberspar Spoolable Fiberglass Pipe
Eliminate downtime due to corrosion and switch from “traditional” steel to Fiberspar LinePipe.
-
Description
-
Specifications
-
Resources
Steel pipe is often considered the product of choice for moving large volumes of liquid and gas over long distances, but there is a more reliable and cost-effective alternative: our Fiberspar™ Spoolable LinePipe.
Understanding your needs, Fiber Glass Systems engineers developed a new line of spoolable composite products that expands application capabilities based on temperature, pressure, and flow rate.
Fiberspar LinePipe is a spoolable product consisting of an inner thermoplastic pressure barrier reinforced by high-strength glass fibers embedded in an epoxy matrix. Intended for corrosive-gathering and injection applications, including general and sour produced fluids and gases, Fiberspar LinePipe can handle pressures up to 2,500 psi and temperatures up to 180 °F in hydrocarbon applications (3,500 psi and 203 °F in water applications).
Features/Benefits

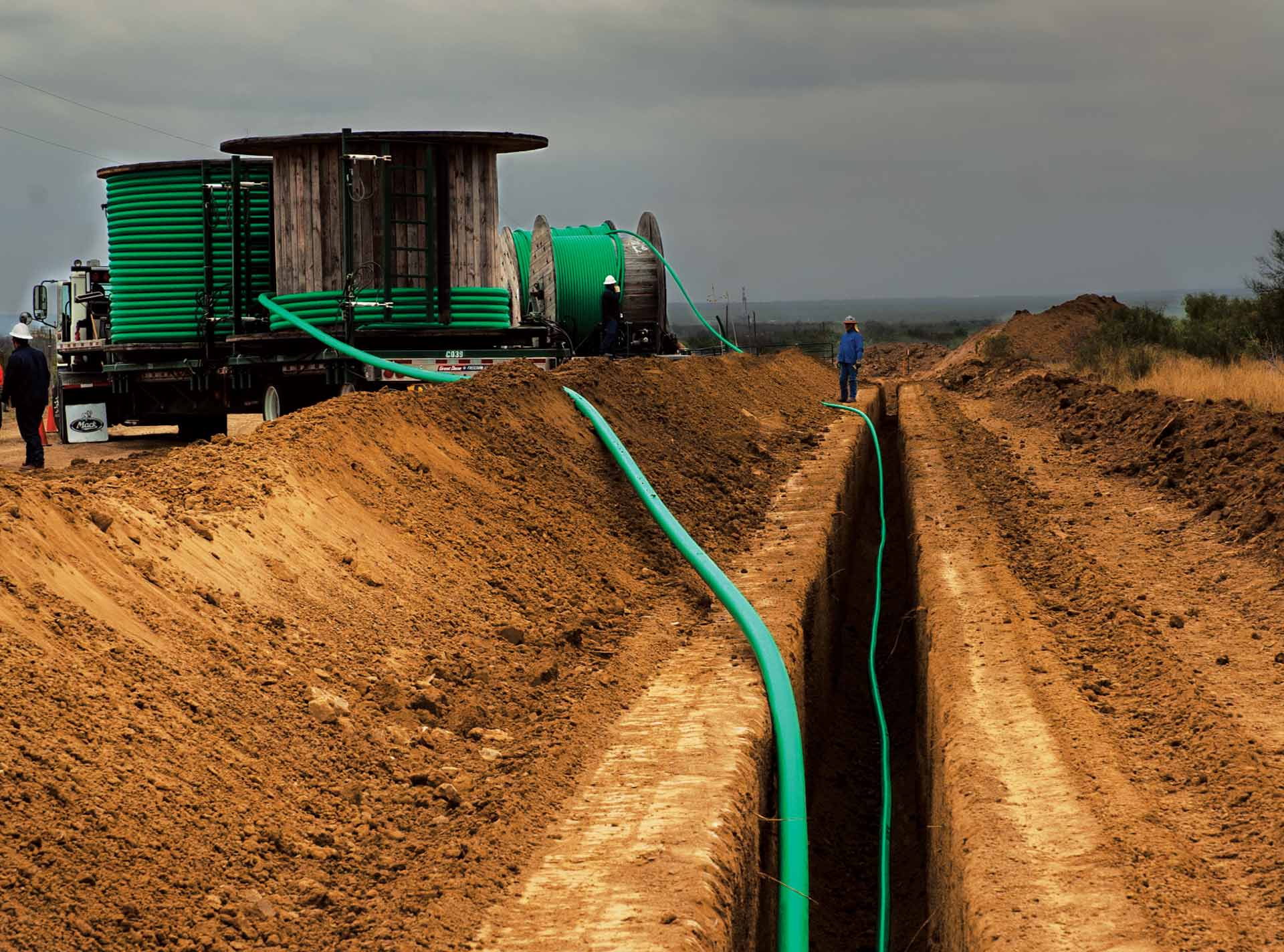

Pipe is supplied in continuous lengths up to 9,000 ft (2740 m) on reels for rapid installation in most applications. A wear-resistant exterior layer provides excellent damage resistance during handling and installation. Connectors are designed to grip a GRE structure, avoiding issues related to viscoelastic creep associated with thermoplastic materials. Connectors are available in all standard configurations (flanged, threaded, weld-end, etc.), or custom connections can be supplied.
Fiberspar Specifications
| Size range | 2 to 6 in. |
| Inner corrosion barrier | HDPE (Grade E) or HTP (Grade X and XT) neat resin |
| Pressure ratings | Up to 3,500 psi (24.1 MPa) |
| Pipe construction | Continuous Single-Angle Filament Wound with Anhydride cured Epoxy structure. Exterior jacket layer included |
| Temperature range | E: -29 to 140 °F (-34 to 60 °C) X: -29 to 180 °F (-34 to 82 °C) XT: -29 to 203 °F (-34 to 95 °C) |
| Joining method | Mechanical—flanged, threaded, or custom |
| Fittings | Not applicable/corrosion-resistant metallic as needed |
| Chemical service | All general services except solvents and aromatics |
Break tradition with Fiberspar.
Added reliability without the extra cost.
