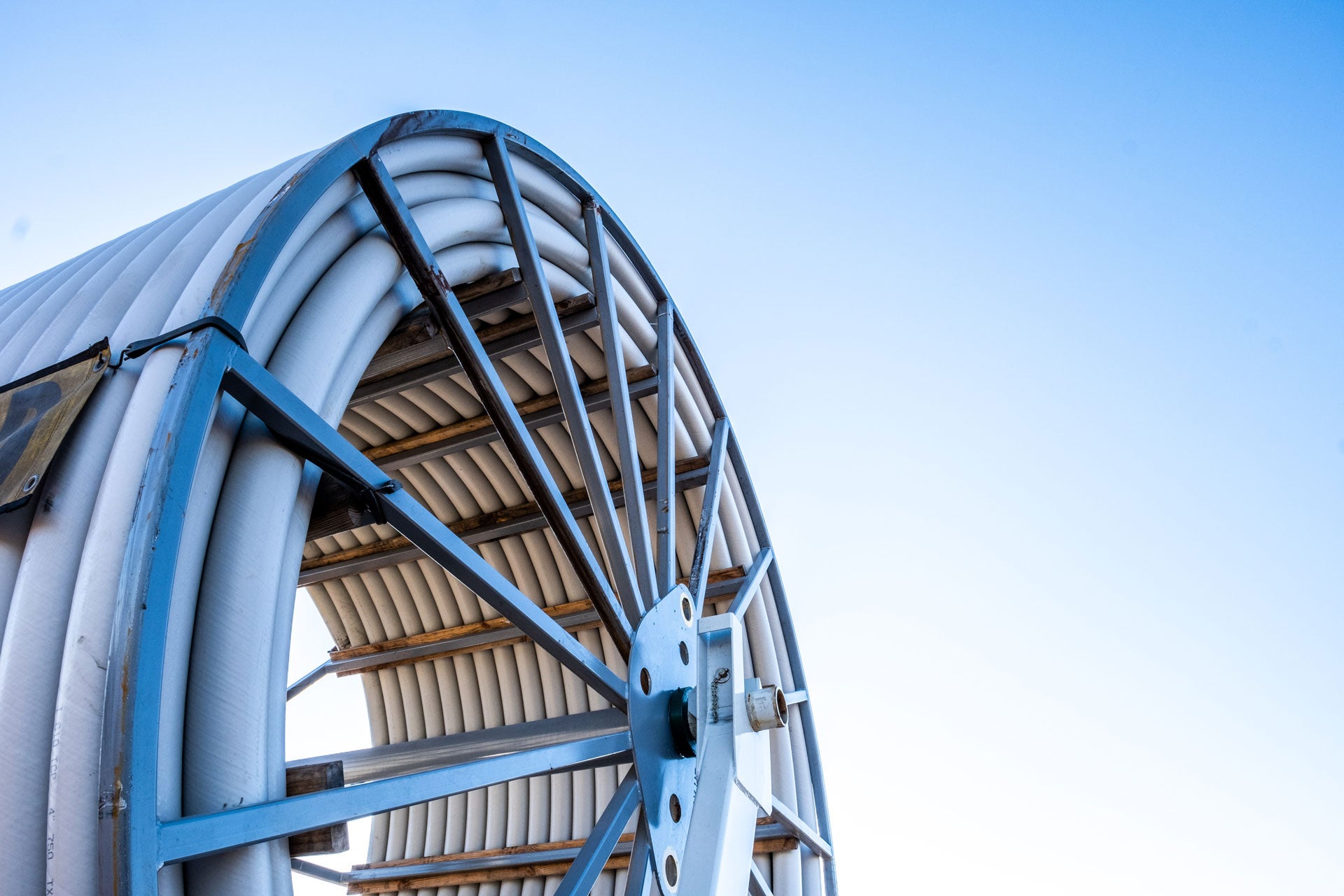

ResourcesDuraFlex is produced in an API Q1 ISO9001 facility that is licensed to produce API 15S pipe. It is then 100% hydrotested at the factory to 1.5x the nominal pressure rating.
Size | 3 in., 4 in., and 6 in. |
PSI | 500 psi |
Max Temp | 140°F (60°C) |
Connection | Flange and pipe to pipe |
500 psi (3.45 MPa) API 15S Nominal Pressure Rating (NPR)
Product & Size | DF 3" 500 | DF 4" 500 | DF 6" 500 | |
Inside Pipe Diameter | in | 2.82 | 3.57 | 5.60 |
mm | 72 | 91 | 142 | |
Outside Pipe Diameter | in | 3.65 | 4.55 | 6.82 |
mm | 93 | 116 | 173 | |
Overall Pipe Wall Thickness | in | 0.42 | 0.49 | 0.61 |
mm | 11 | 12 | 15 | |
Pipe Weight | lbs/ft | 2.00 | 3.06 | 5.72 |
kg/m | 2.98 | 4.56 | 8.53 | |
Reel Capacity | ft | 3,000/1,700 | 2,400 | 1,175/525 |
m | 915/518 | 732 | 358/160 | |
Reel Size | ft | 12/10.5 | 12 | 16/14 |
m | 3.66/3.20 | 3.66 | 4.88/4.27 |
