Acid Pumpers

Our acid pumpers are the perfect fit for today’s modern acidizing treatments.

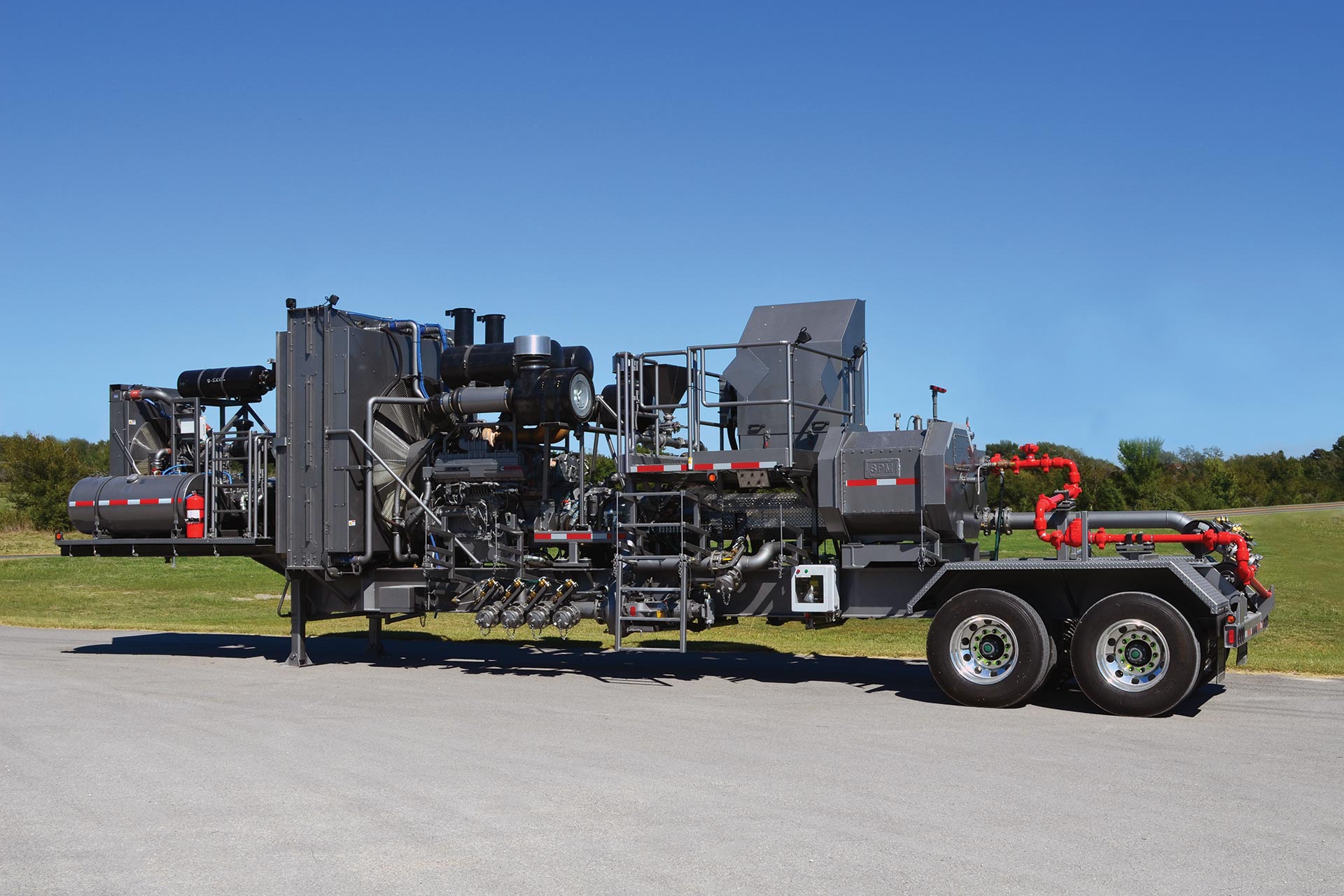

Side view of Trailer-Mounted Acid Fracturing Pumpe
Description

Our acidizing pump portfolio consists of acid kill units, conventional acid pumps, and acid fracs. Rolligon™ acid pumpers are designed for small to large volume, high-pressure acid jobs. We manufacture custom-suited units to meet your needs. In conjunction with Wilco™ acid transports for large acid pumping jobs, we also have remote control and data acquisition options available.

Trailer-Mounted Acid Pumper

Our conventional acid pump units are mid-sized high-pressure pumping units equipped with a minimum 800 bhp downhole and capable of hauling up to 1,500 gallons of acid. Our Rolligon acid pumpers are designed to be operated as standalone units for small acid pumping jobs or in conjunction with larger acid transports for larger pumping jobs.

Features/Benefits

  • Trailer designs range from 800 to 950 bhp
  • Twin 750-gallon acid transport tanks
  • Quintuplex pump standard
  • Remote control and data acquisition options
  • Mix tub for salt and chemical additives
  • Enhanced versions with proppant and chemical delivery
  • Wet kit or unit-mounted hydraulic power source

Kill Truck

Our Enerflow™ and Rolligon kill trucks can be used for jobs requiring large amounts of acid pumped at intermediate rates and pressures. With its high carrying capacity, a kill truck can be operated as a standalone unit. This unit is designed as an economic option for well servicing applications for moderately producing wells.

Features

  • Cab-mounted advanced digital frac controls (VERSAFRAC™)
  • Twin centrifugal pumps for simultaneous on-the-fly acid mixing and triplex pump boosting operations
  • Mix tub for adding rock salt or chemicals on-the-fly
  • Pumping power from road engine/transmission via splitter box assembly
  • Iron racks for transporting support iron Triplex pump standard; other well service pumps available
  • Fifth-wheel assembly for coupling with acid transport trailer
  • Pneumatic actuator controls to actuate both truck and trailer valves

Options

  • Data acquisition system featuring multiple rate and pressure inputs complete with serial output string to a laptop computer
  • Poly-pipe low-pressure pipe for increased acid resistance

Trailer-Mounted Acid Fracturing Pumper

Equipped with 1,350 to 1,500 bhp, our Rolligon™ acid fracturing unit is designed to be used in conjunction with acid transports for large acid pumping jobs, or it can be used as extra horsepower on fracturing jobs.

Features:

  • Advanced digital frac controls (VERSAFRAC)
  • Mix tub for adding rock salt or chemicals on the fly
  • Twin centrifugal pumps for simultaneous on-the-fly acid mixing and triplex pump boosting operations
  • Iron racks for transporting support iron
  • Triplex pump

Options:

  • Remote box for controlling the unit during fracturing jobs
  • Hydraulic actuated valves Jet mixer
  • Data acquisition system featuring multiple rate and pressure inputs complete with serial output string to a laptop computer
  • Local hydraulics or tractor-mounted wet kit power pack
  • Poly-pipe low-pressure pipe for increased acid resistance
Resources
  • Acidizing Solutions Brochure

Rolligon Kill Truck in field
Side view of Trailer-Mounted Acid Pumper
