Phoenix Series Drill Bits for Geothermal Drilling Applications

Empowering Sustainable Energy

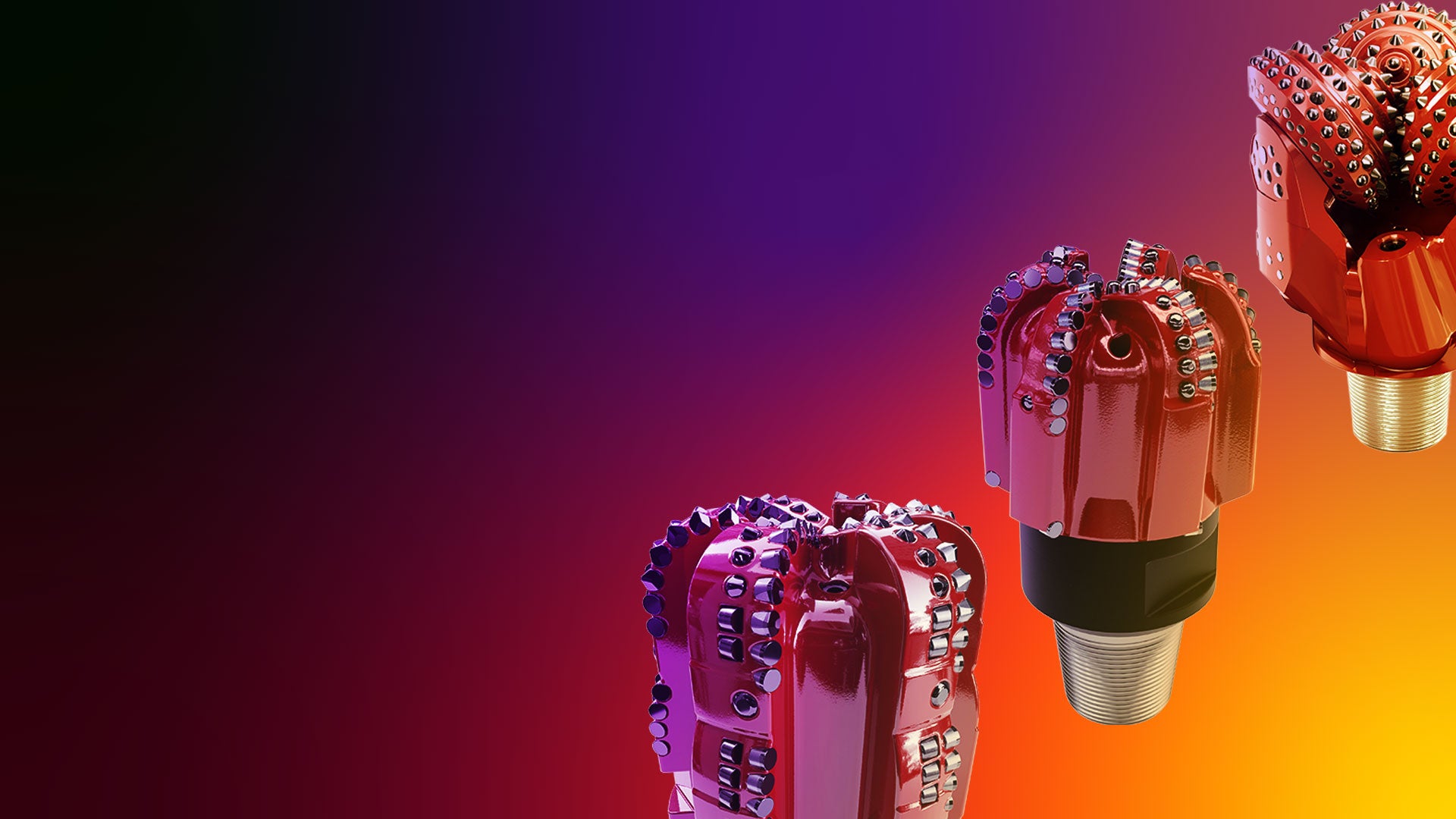

Render of three Phoenix Series Drill Bits with an ombre purple to yellow background

Geothermal energy is one of the cleanest and most plentiful energy resources, and a key challenge in geothermal drilling applications is the selection of drill bit solutions. The primary performance objective in a geothermal operation is to successfully drill to a planned subsurface depth at the lowest possible cost per foot drilled. High levels of formation hardness and abrasiveness are the hallmark of igneous and volcanic rocks that are typically encountered in geothermal wells. When drilling in hard formations, higher weight-on-bit requirements generate frictional energy, which can lead to cutting element damage and inhibit drill bit performance. Geothermal drilling applications can also experience downhole vibrations, which is another factor that shortens bit life and impacts drilling performance.

For many years, tungsten carbide roller cone insert bits were implemented in geothermal drilling applications, as they were believed to be the most effective way to drill hard rock formations. Due to their relatively poor performance and short bit life in hard rocks (with a few exceptions), polycrystalline diamond compact (PDC) drill bits were previously disregarded in geothermal applications, where impact and thermal-abrasive resistance can be detrimental to their reliability.

With technological advancements in PDC drill bit design, bit/bottomhole assembly modeling, analytical capabilities, and drilling parameter optimization techniques, issues related to downhole vibrations have been brought under control, which has helped to improve drilling performance.

One the most significant PDC advances has been the invention of leaching techniques by ReedHycalog in the late 1990s. The leaching of PDC cutter diamond layers improves the cutters’ thermal and abrasion resistance to unprecedented levels, giving PDC drill bits an edge over roller cone drill bits, even in harsh rock environments. Since then, ReedHycalog has been the pioneer and industry leader in the development of PDC technologies and drill bit solutions.

Continuing our tradition of providing the latest drilling technologies, ReedHycalog is proud to introduce high-performance drill bits for geothermal drilling applications.

Our Phoenix™ series drill bits, now including geothermal-tailored roller cone products are based on the field-proven designs, which have been customized to drill farther and faster in hard rock environments.

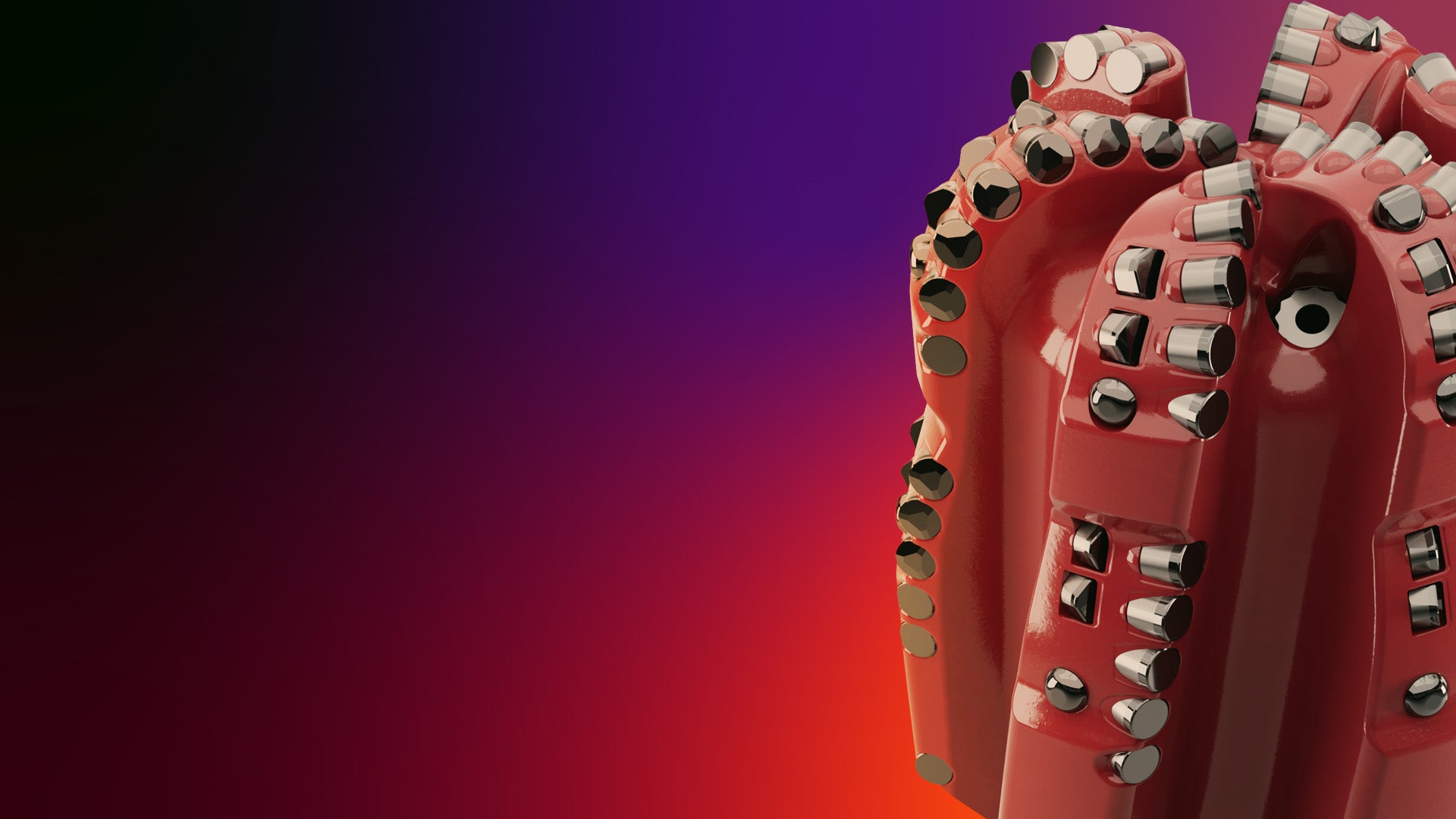

Phoenix PDC drill bits incorporate ION+™ GT cutters, which utilize NOV’s patented thermal-stabilizing, deep-leach technology with refined diamond feeds and increased sintering pressures that provide denser diamond for increased toughness and abrasion resistance. The result is a high-performance, thermally stable cutter that stays sharper longer by minimizing chipping and breakage common in porous and brittle rock and by reducing wear from typically fine-grain, abrasive formations. The ION+ GTplatform also offers application- and formation-specific geometries designed for maximizing rock failure by balancing fracturing and shearing rock-failure mechanisms. ION+ GTshaped cutters are highly effective and efficient in volcanic rock formations, providing increased drilling efficiency without sacrificing durability.

Phoenix series bits are custom designed to enhance drilling efficiency in hard rock formations. Our Phoenix drill bits utilize specialized design tools, including computer analysis of torque response, simulations of heat generation and cutter temperature, bit lateral stability analysis, and material enhancements to maximize downhole performance.

Effective torsional stability is one of the primary objectives when drilling in hard, interbedded formations, and our Phoenix series bits reduce the risk of torsional oscillations through enhanced depth-of-cut control. Using patent-pending components along with an innovative depth-of-cut analysis, our Phoenix bits, along with uniquely shaped cutter geometries, will provide improved torque response in geothermal applications.

As a leading provider of drill bit solutions to the oil and gas industry, we’ve leveraged that same technology and experience to establish our Phoenix series bits in the geothermal market. ReedHycalog has drilled some of the longest and fastest intervals in geothermal wells around the world. From a 400% rate of penetration improvement in granite drilling in the US to contributing in saving 26 drilling days in Switzerland in hot dry rock conditions, we’re positioned to equip you with the most advanced drilling technologies for your geothermal applications.

For additional information please contact us at [email protected].
